Maxwell Trail Bridge

Concrete Arch Bridge over Rock Creek
Maxwell, Story County, Iowa

Click the Photo Above to See All Photos of This Bridge!
Name Maxwell Trail Bridge
Built By Chicago, Milwaukee & St. Paul Railway
Contractor Unknown
Currently Owned By Iowa DNR
Length 50 Feet Total
Width 2 Tracks
Height Above Ground 25 Feet (Estimated)
Superstructure Type Concrete Arch
Substructure Type Concrete
Date Built 1913
Traffic Count 0 Trains/Day (Bridge is a Trail)
Current Status Rails to Trails
MILW Bridge Number Z-1068
Significance Moderate Significance
Documentation Date December 2016


While the nearby Hoy Bridge is the most well known structure along the Heart of Iowa Nature Trail, this structure is equally as significant.
Crossing Rock Creek in Cambridge many feet above the water, this simple closed-spandrel arch was built in 1913. While many other arches sport the closed-spandrel design, this is one of the largest.
The previous bridge at this location was likely a wooden trestle. This design was built during a double tracking project.

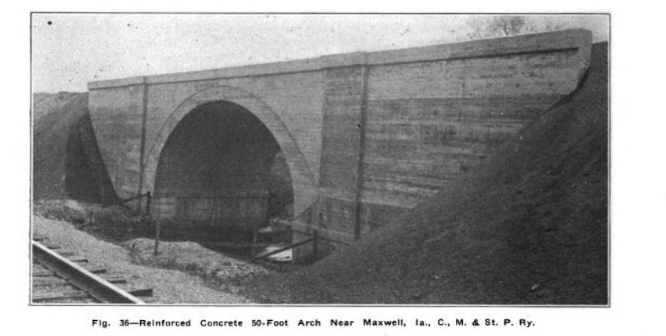

Construction of bridge
Photo of construction from Railway Review: Volume 54 (digitalized by Google)

While appearing frail, the bridge actually remains in rather good condition with some minor spalling.

The author has ranked the bridge as being moderately significant due to the unique large span and the limited amounts of large concrete arches in the area.
The photo above is an overview. The bridge can be accessed from a nearby park.

Citations

Source Type

Source

Build Date Date Stamp
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
